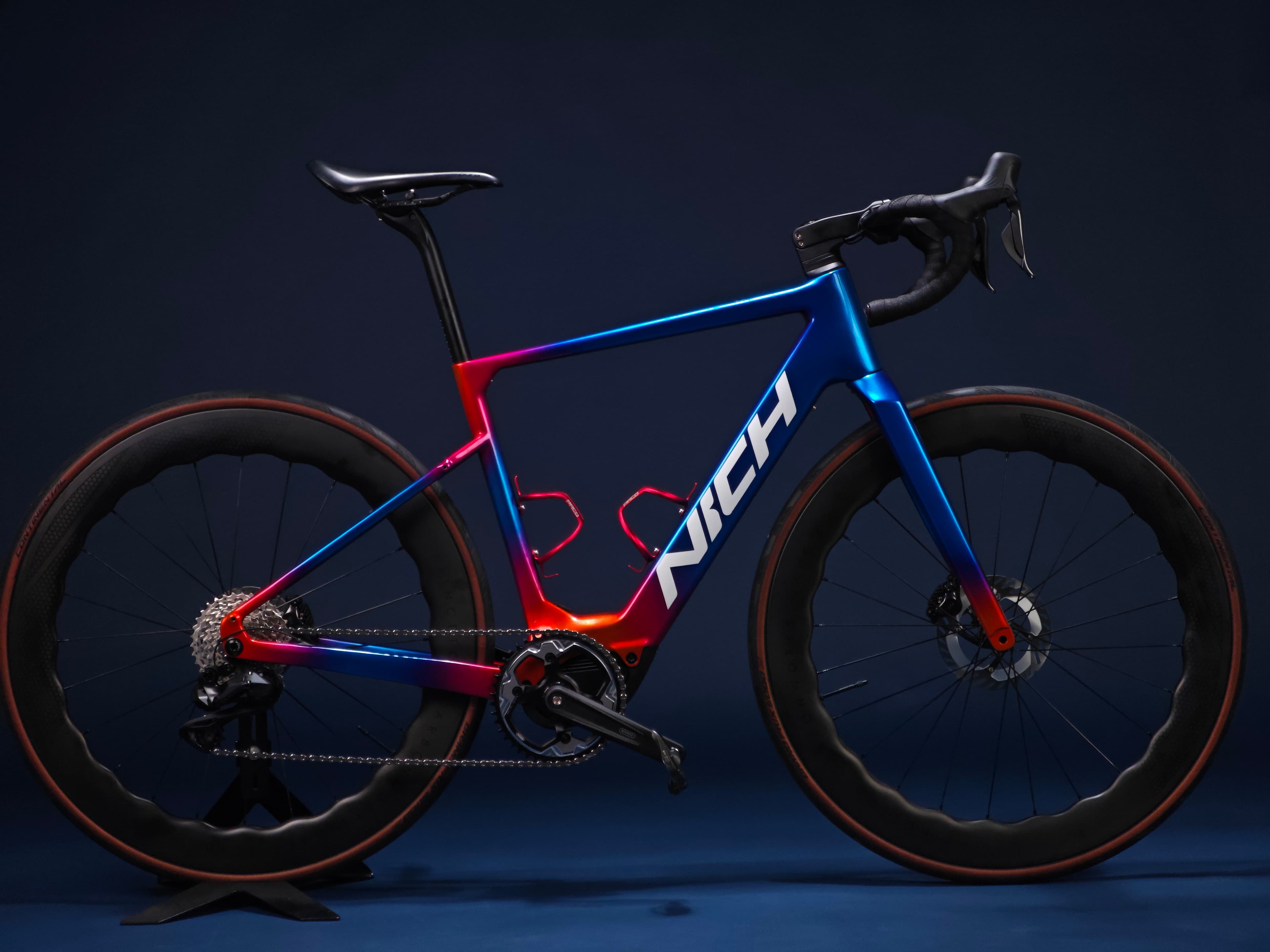

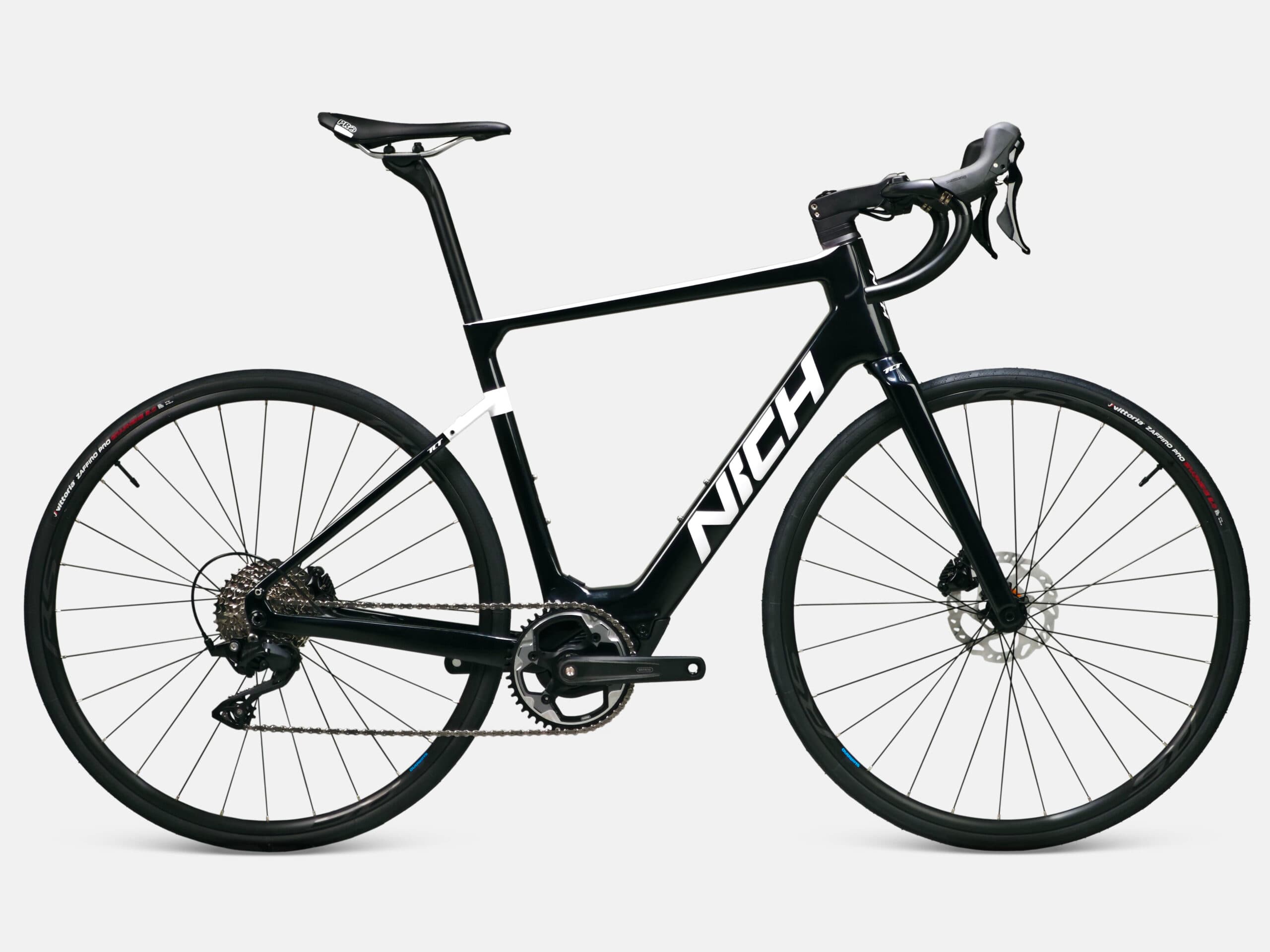

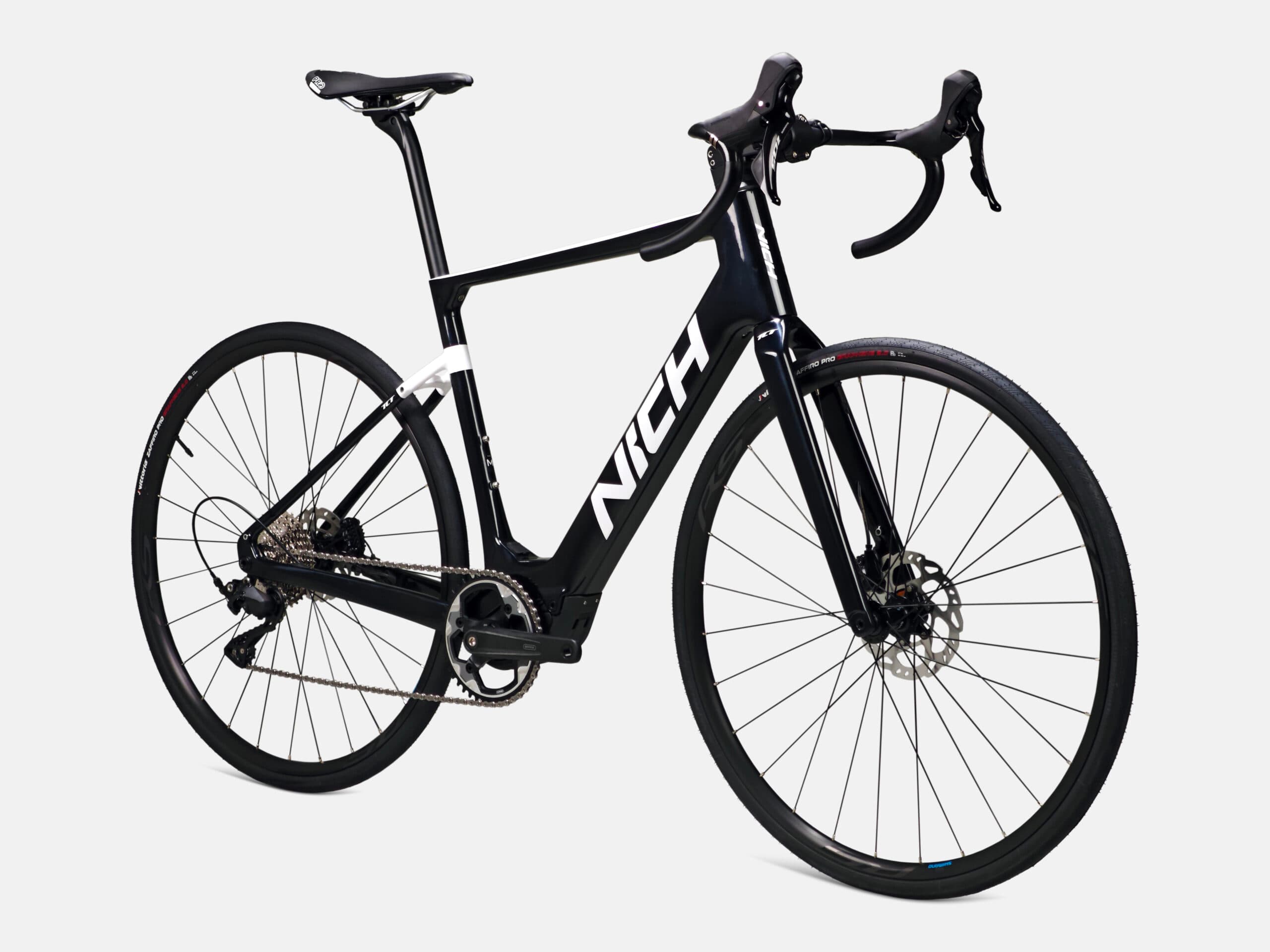

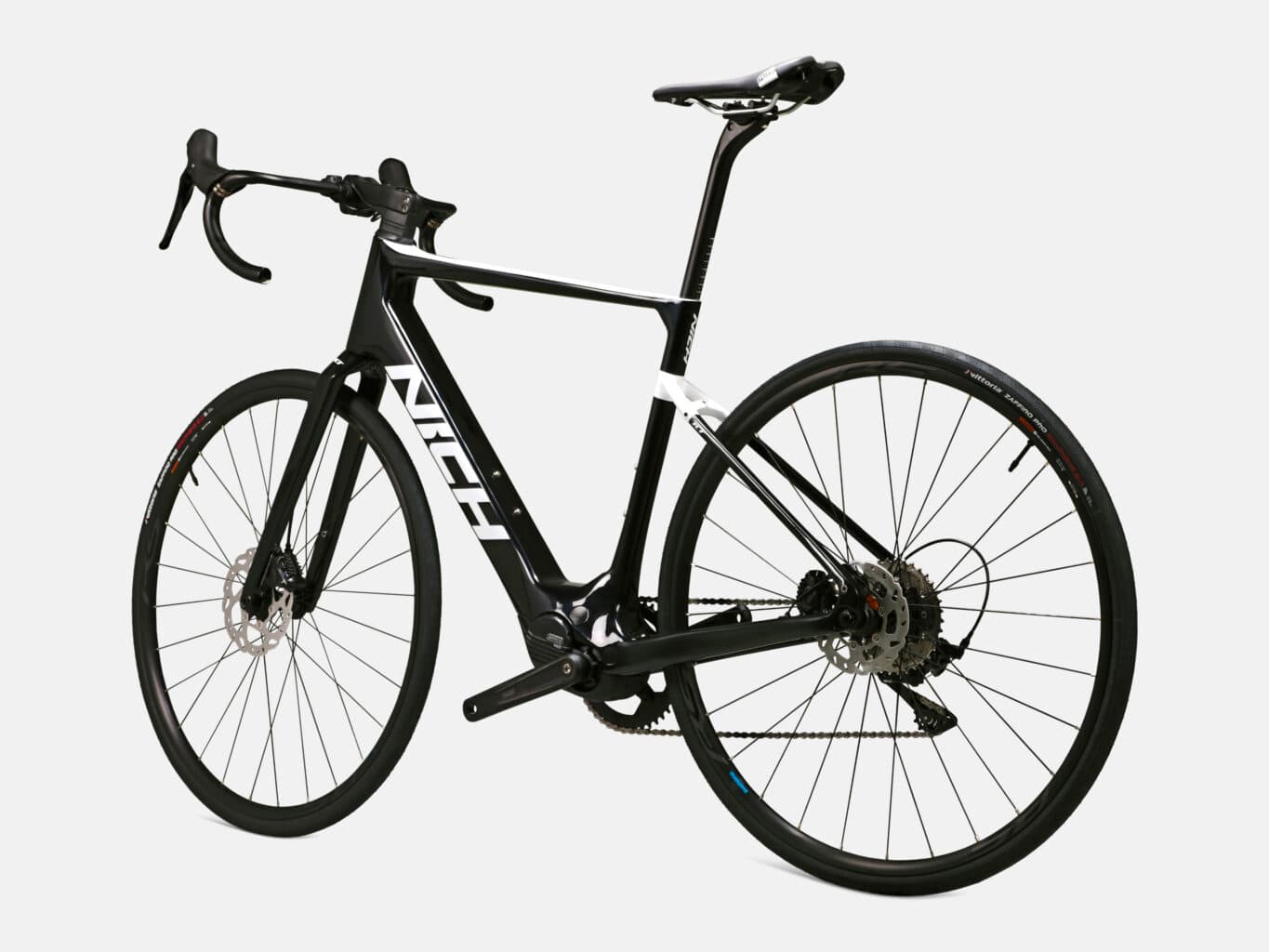

NICH 2025 TCT E-Gravel Bike
The NICH TCT is a carbon e-gravel bike featuring a Bafang M820 motor and integrated 370Wh battery with 100km+ range. Built on a Toray T800 carbon frame with five assistance modes for natural pedal feel. Designed for riders who want to ride further without sacrificing the pure cycling experience. Contact us for pricing.

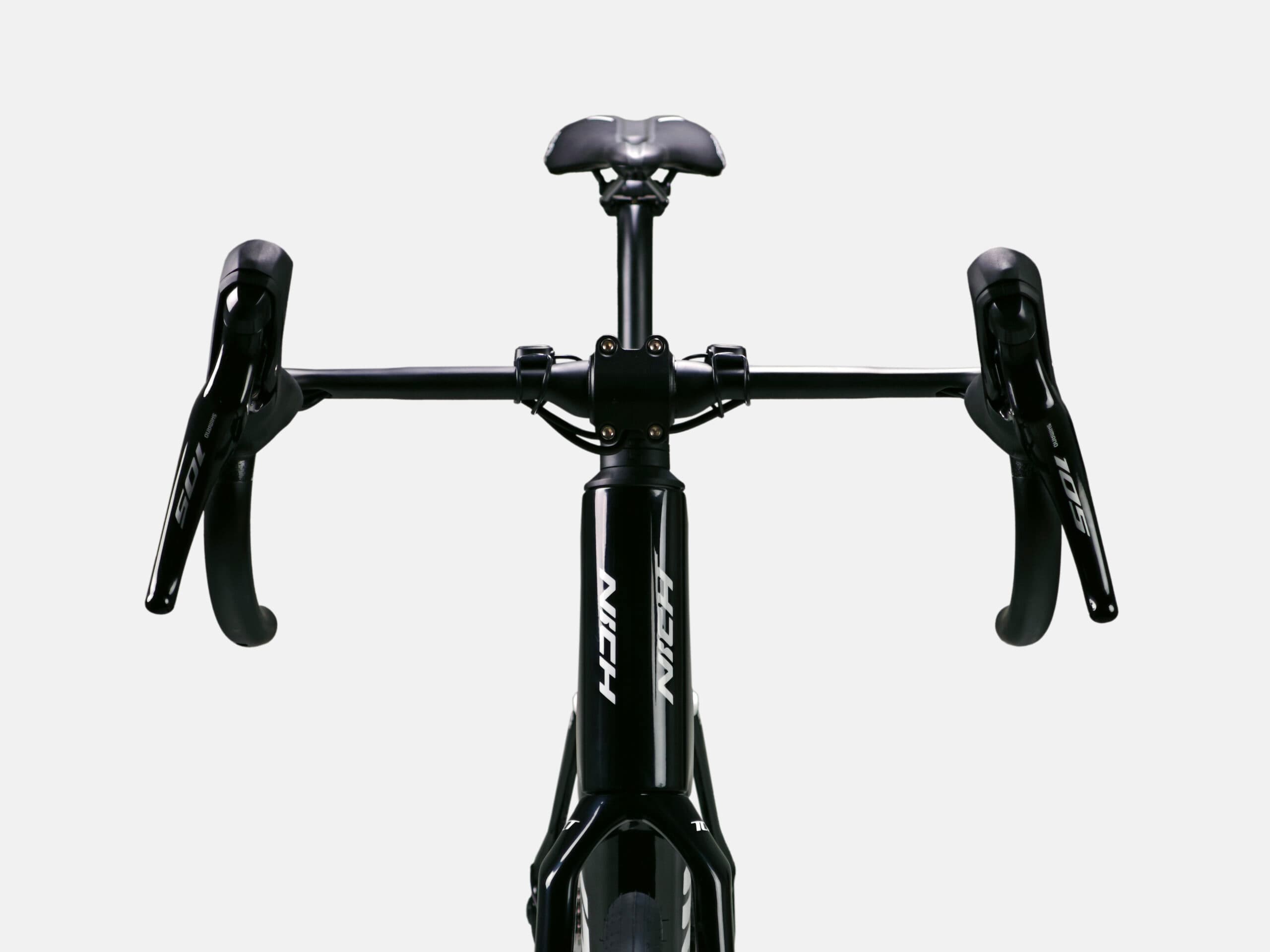

Design Concept
At NICH, we believe cycling is not about numbers — not about speed, power, or who arrives first. It has always been about sharing the ride. Over time, we came to understand that not everyone can ride at the same level as before. Age changes. Life becomes busier. Training time becomes limited. And sometimes, circumstances simply don't allow us to be as strong as we once were. But none of these reasons should take away the joy of riding with friends. TCT was created for those moments.
Mold & UDH System
The NICH TCT is our first E-Gravel bike, designed for riders who seek freedom beyond paved roads without sacrificing the pure riding feel of a traditional bicycle. Built on a lightweight carbon fiber frame and powered by a seamlessly integrated electric system, TCT delivers natural assistance only when you need it.

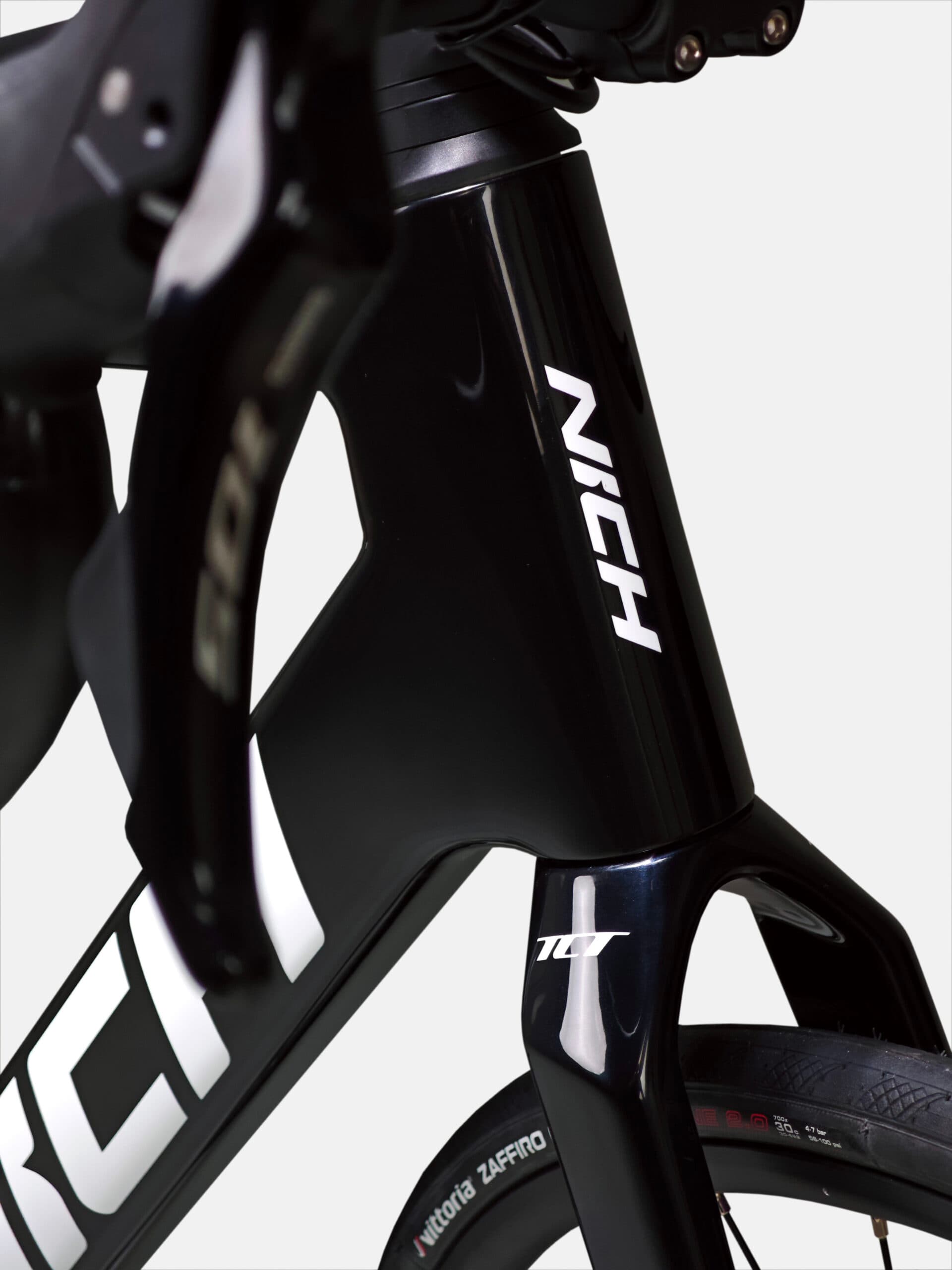

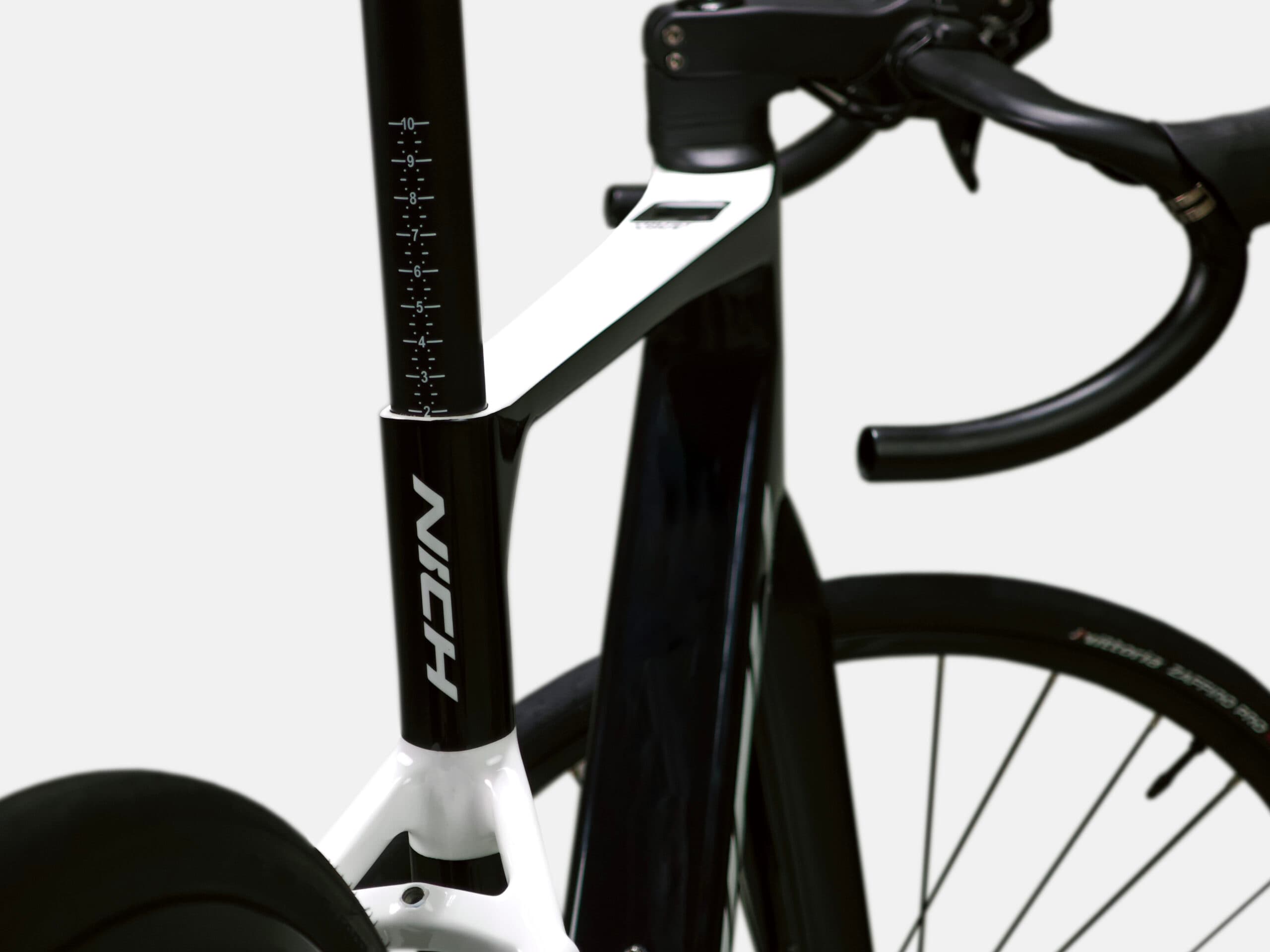

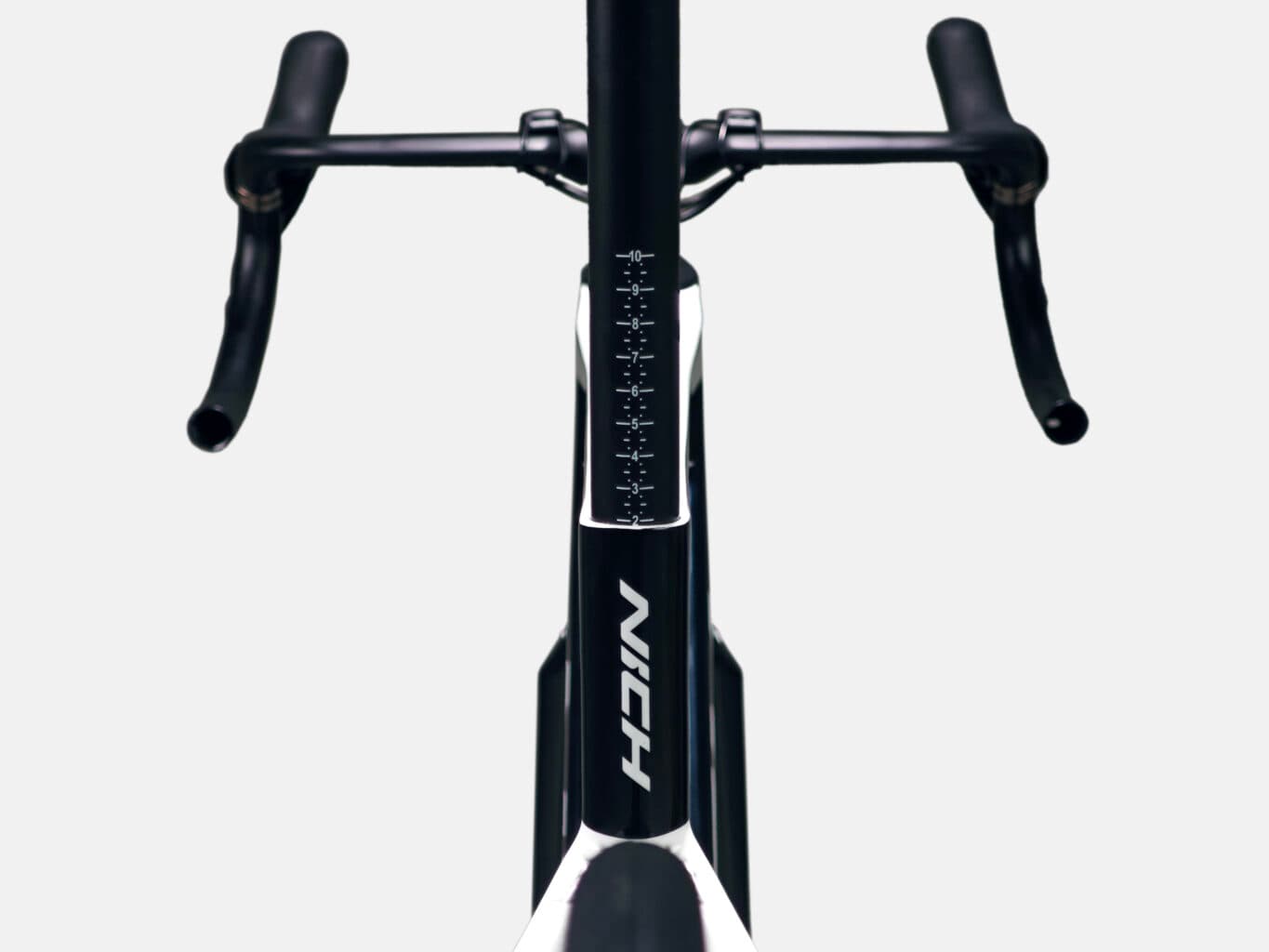

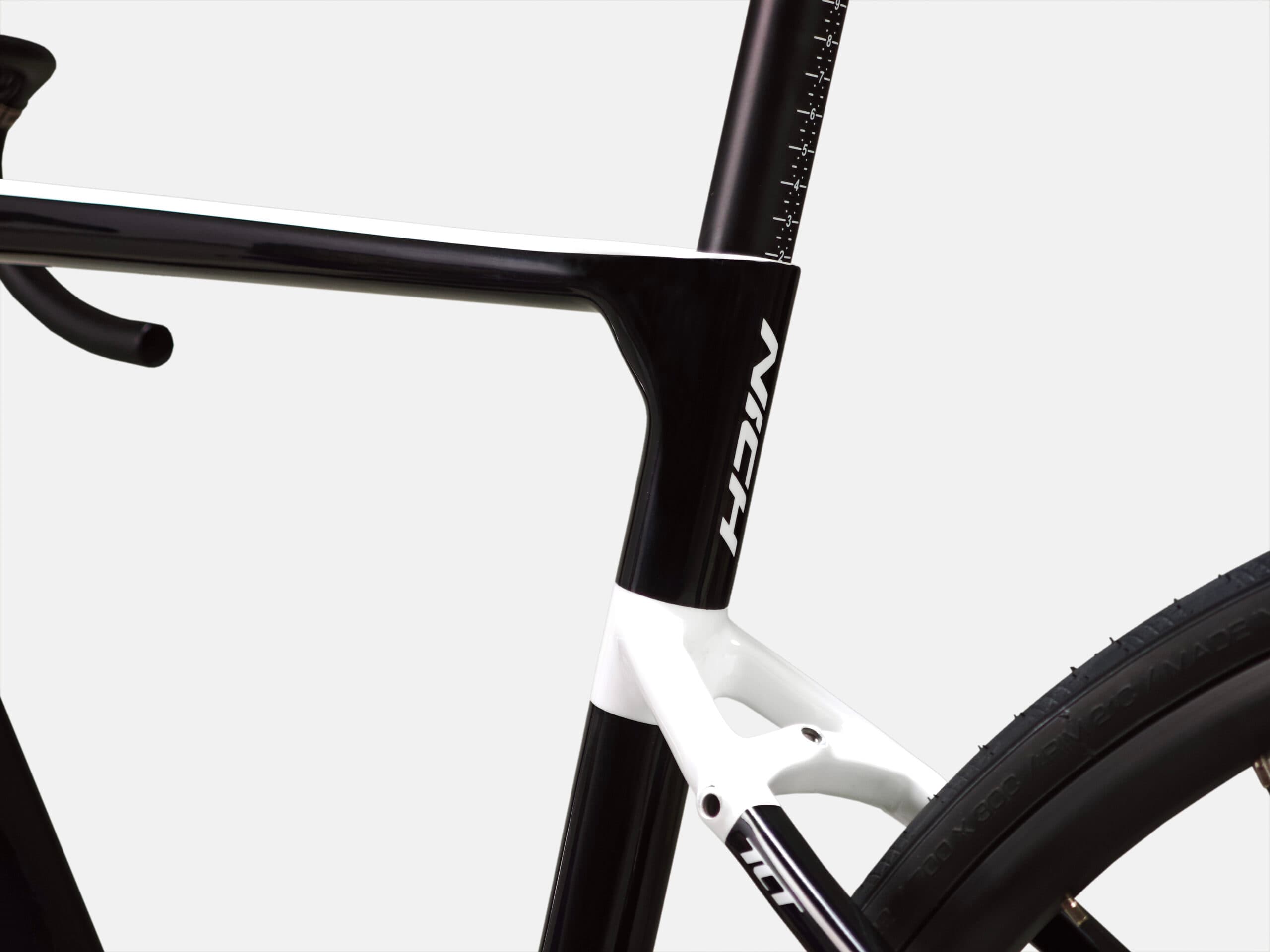

Frame & Design
Clean integration meets purpose-built gravel performance.
- Carbon Fiber Frame (Toray T800)
- Gravel Geometry — stable on loose surfaces, confident on asphalt
- Clean Integration Design — internal cable routing, fully concealed battery

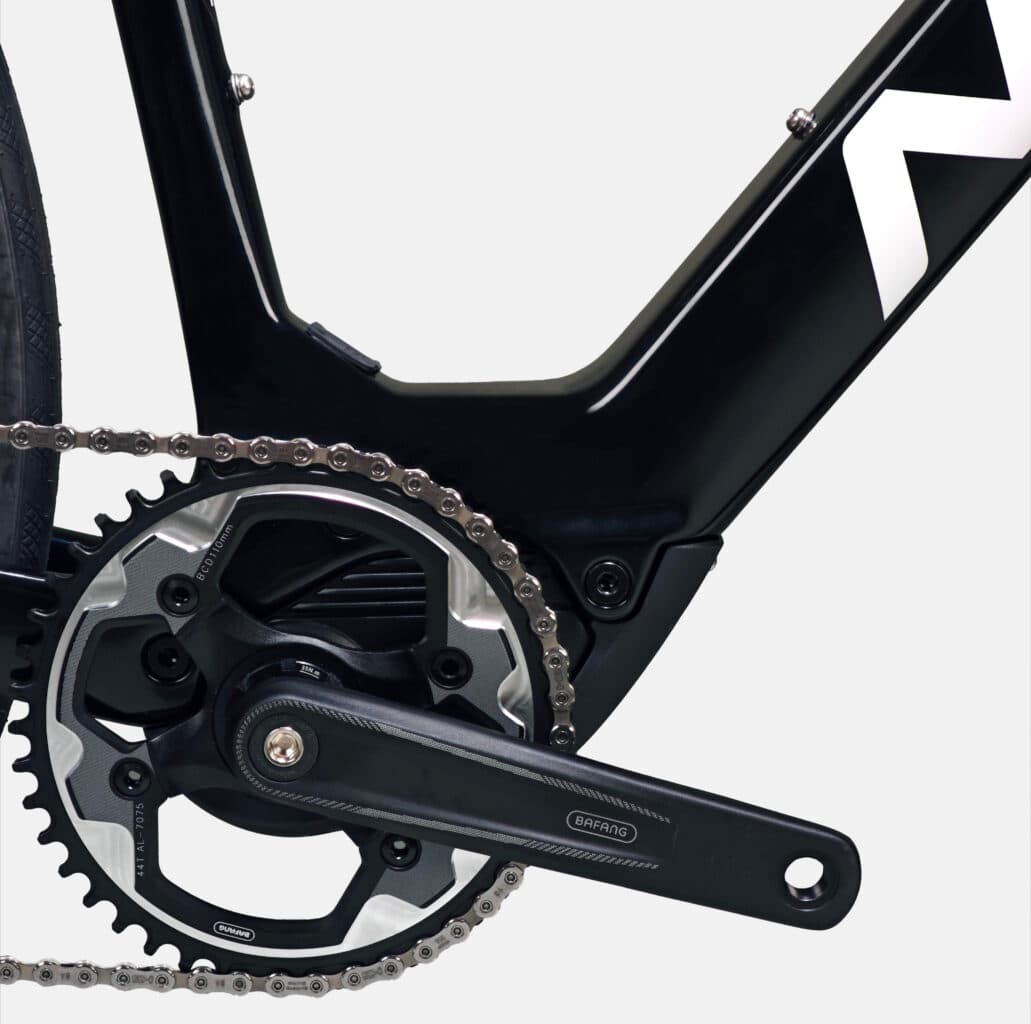

Electric System
Powered by Bafang's latest lightweight drive system for natural pedal assistance.

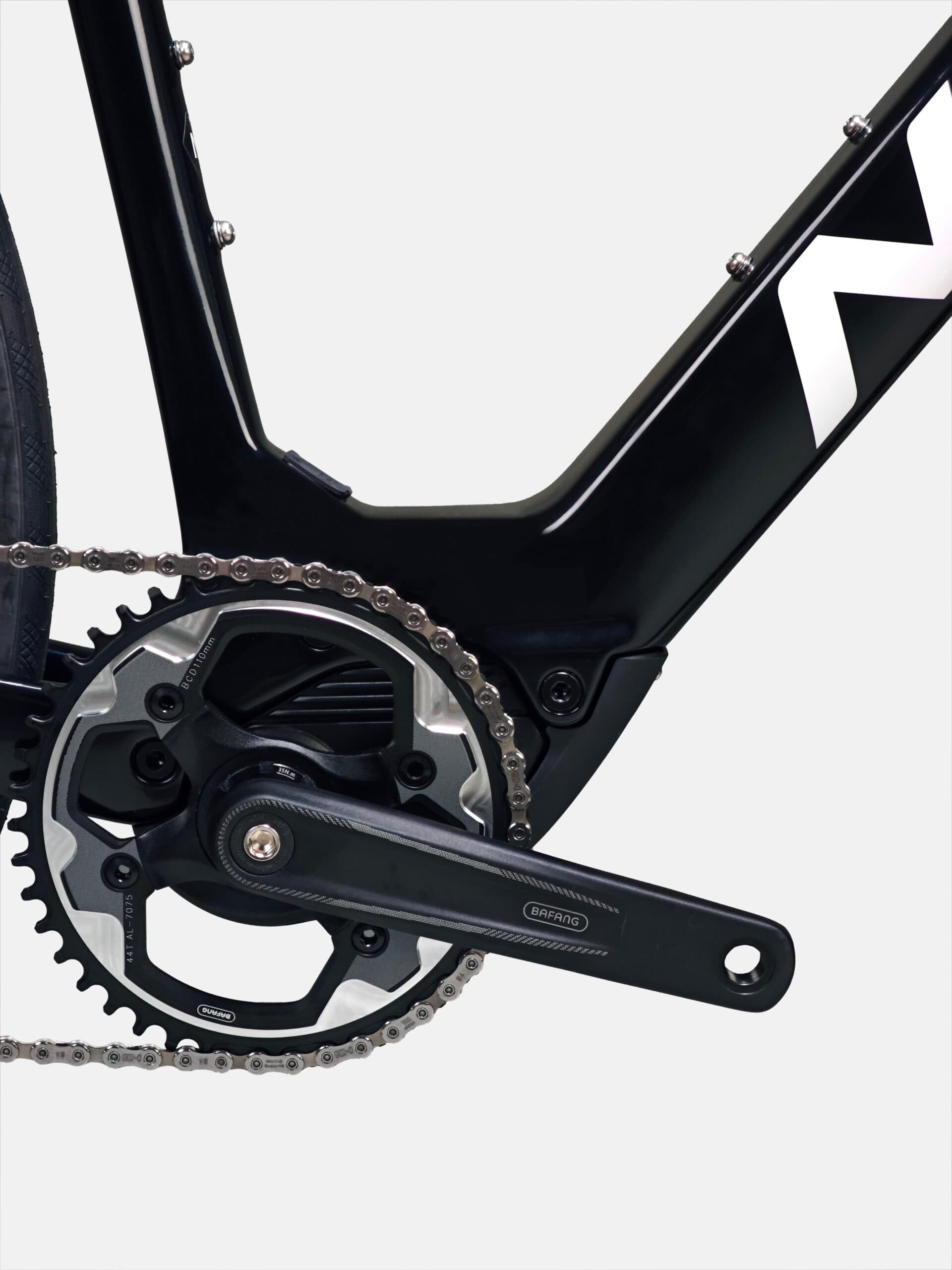

- Motor: Bafang M820 — Ultra-lightweight, smooth natural power delivery
- Battery: Bafang F044 (Built-in) — High-capacity internal battery

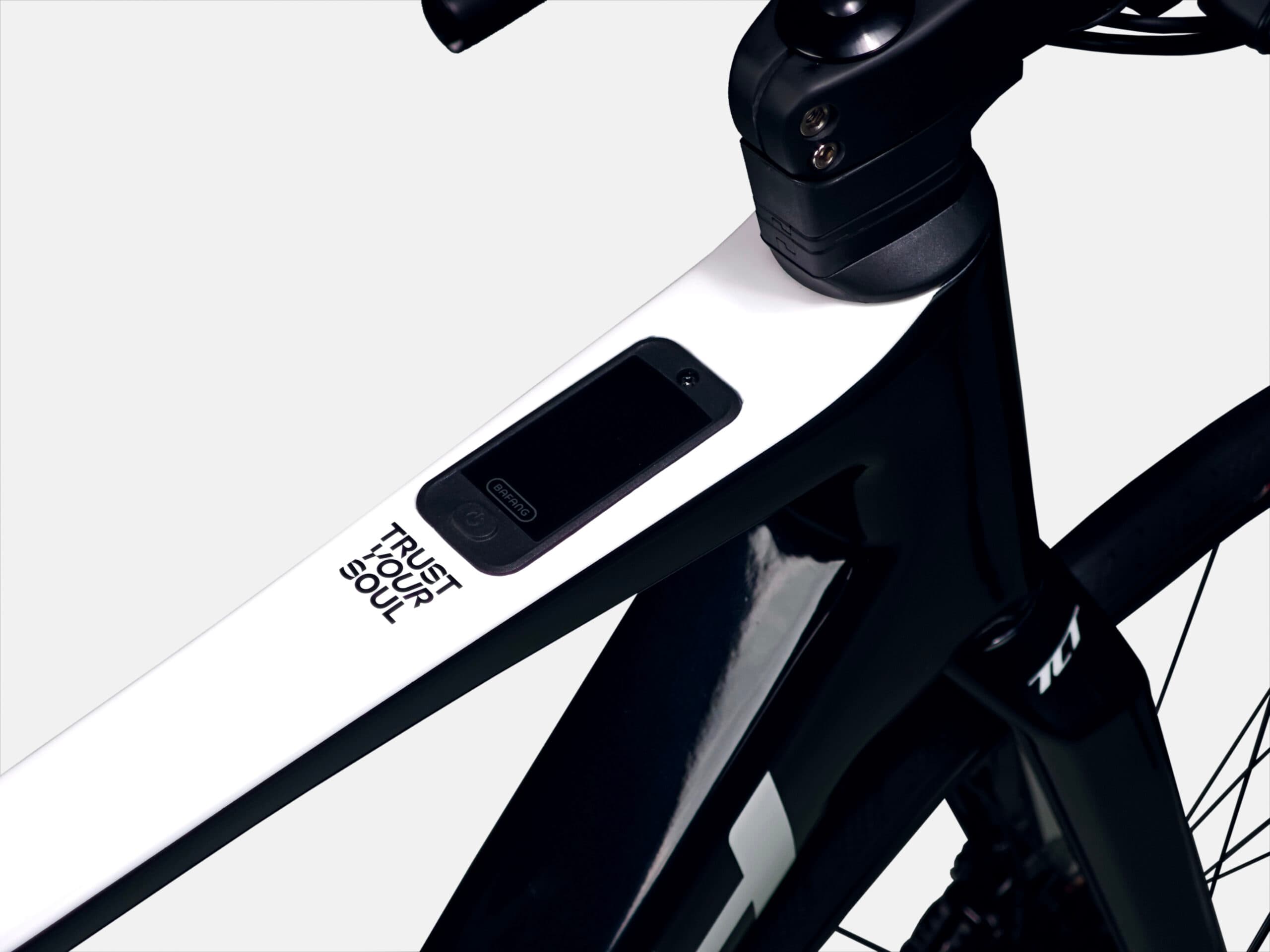

- Controller: 5 Assistance Modes

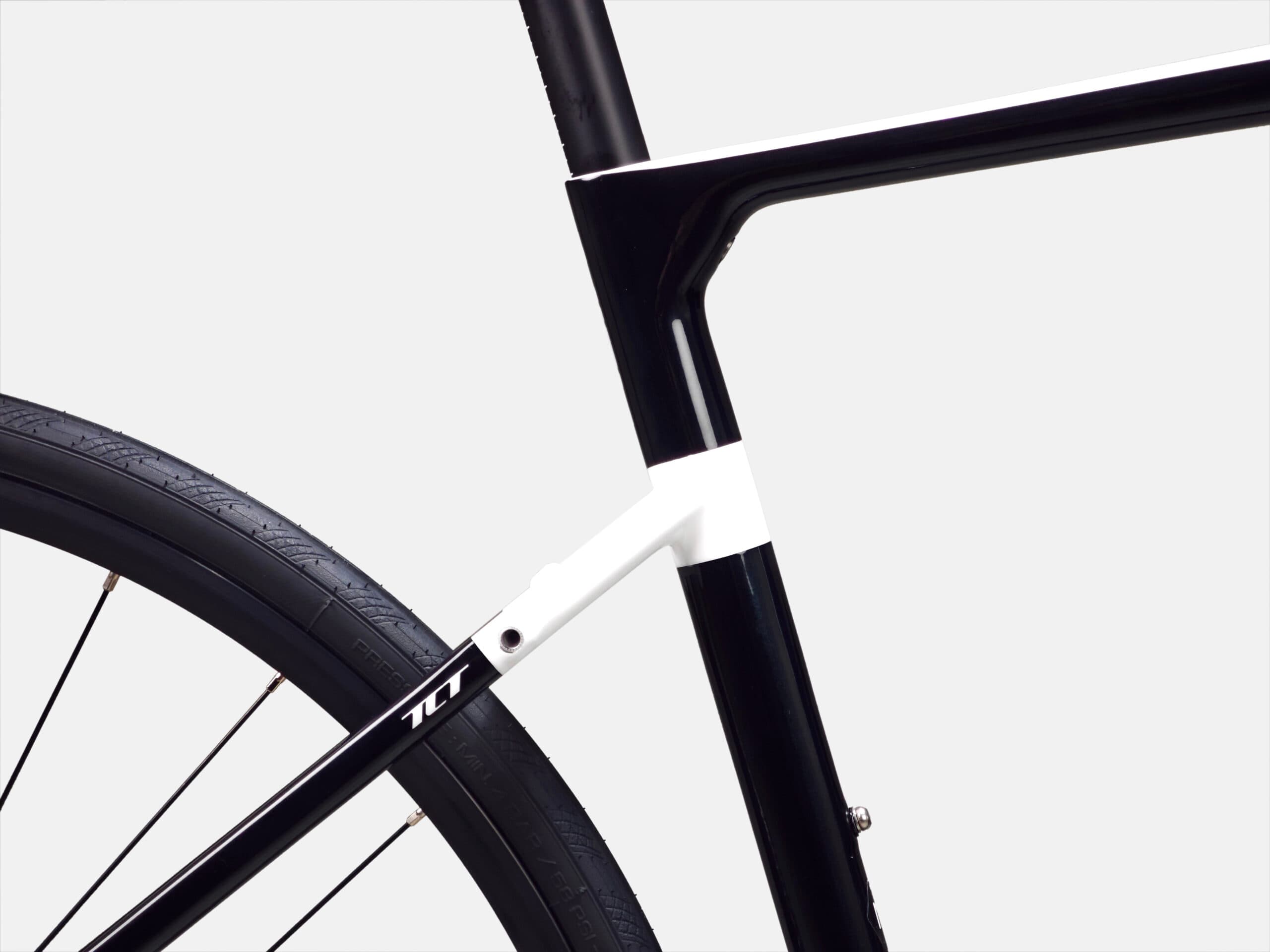

Ride Experience
NICH TCT — Ride further. Ride naturally.
- Natural pedal assist with no abrupt acceleration
- Balanced weight distribution
- Quiet motor operation
- Designed to enhance endurance, not dominate the ride
Technical Details
| Frame Material | Carbon Fiber Toray 800 |
| System | Powered by battery and assist motor (e-bike system) |
| Seatpost | Full-carbon (27.2) |

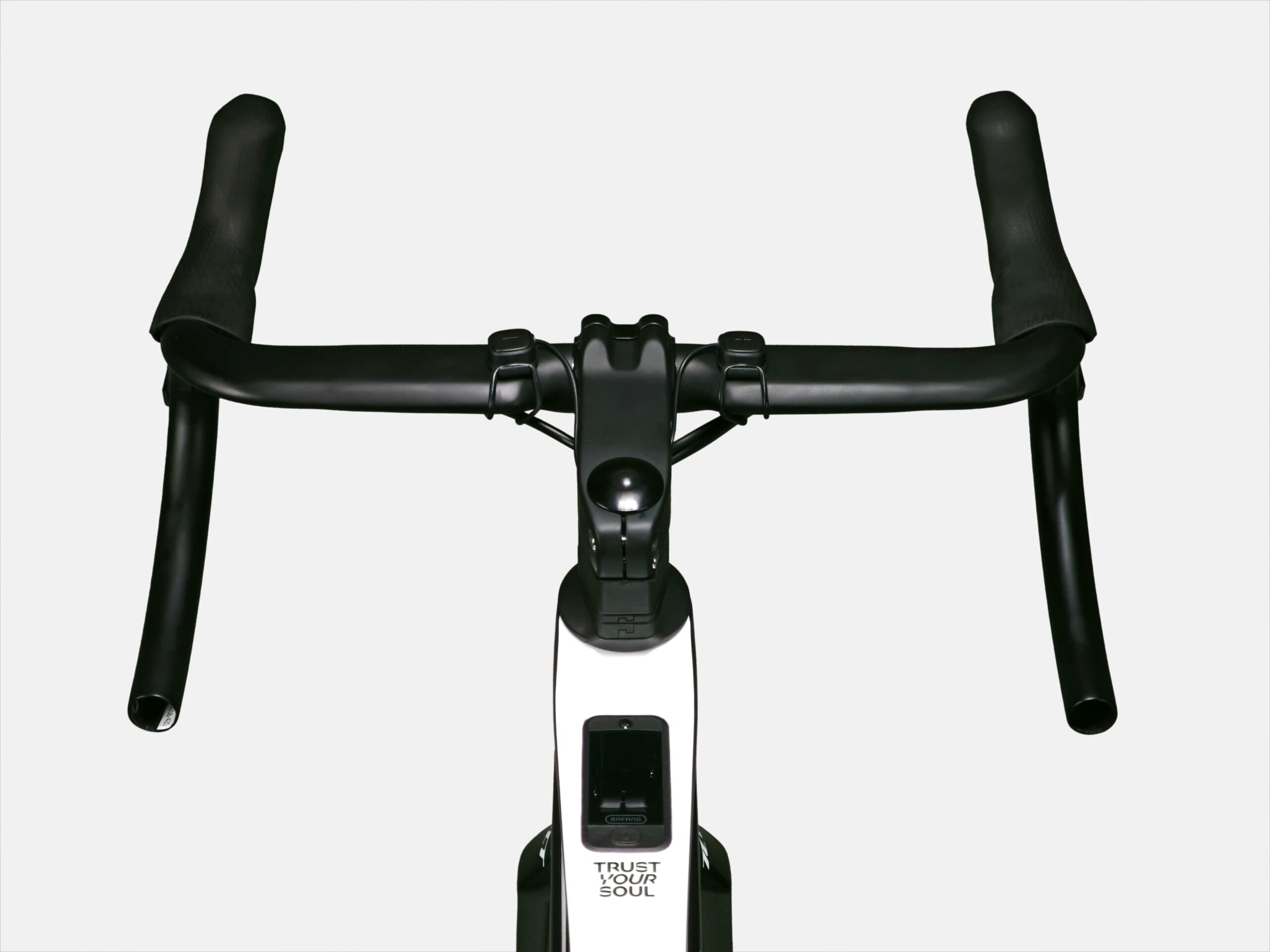

| Handlebar | Full-carbon |
| Derailleur | Mechanical or Electronic options |
| Controller | 5-Speed mode |

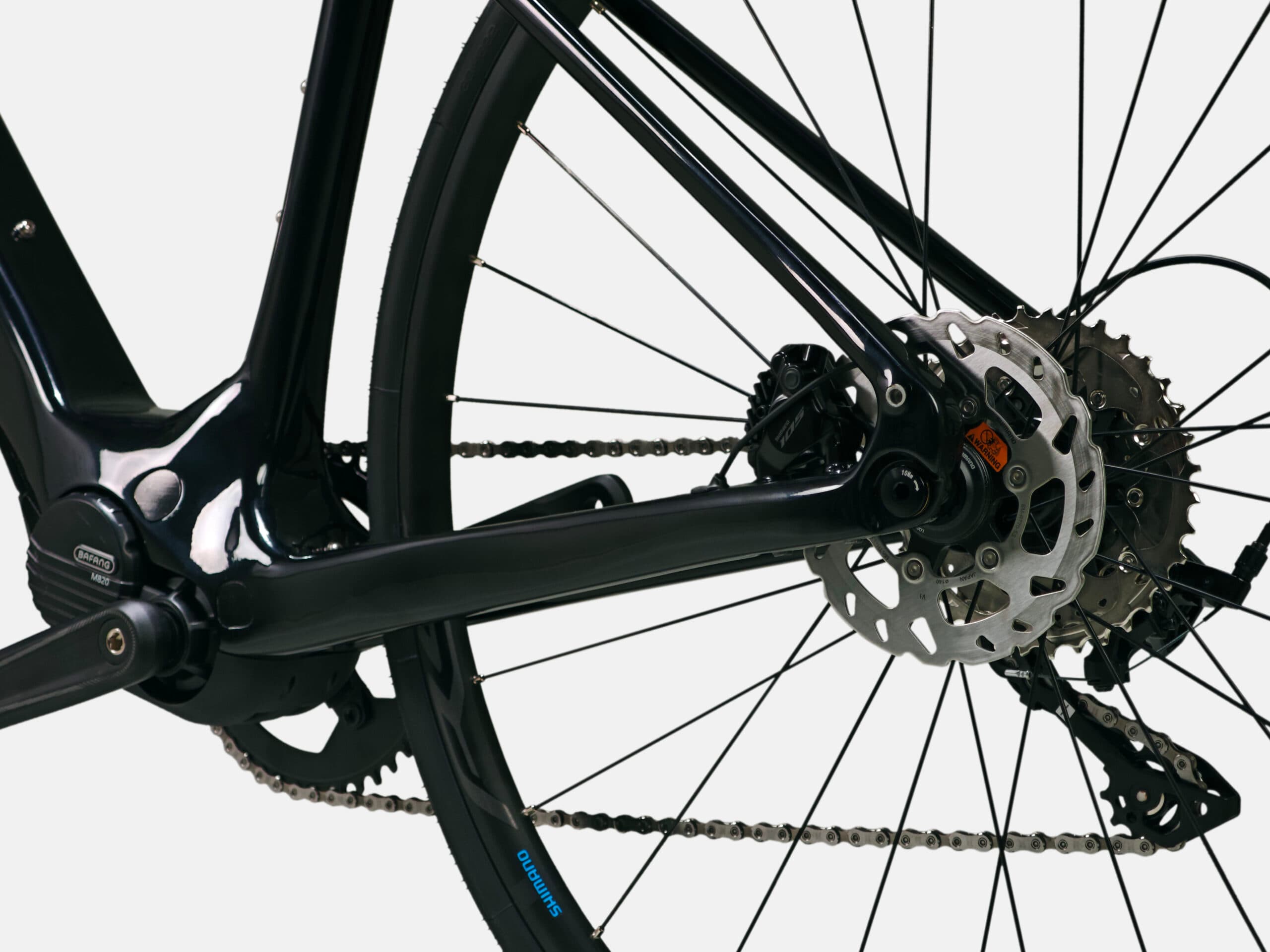

| Rear Hanger | UDH |
| Motor | Bafang M820 |
| Built-in Battery | Bafang F044-370 Wh |
| Optional External Battery | Bafang F042-252 Wh |
| Estimated Range (Eco-Tour) | 100 KM+ |
| Chainring | 1X44T |
| Groupset | Mechanical or Electronic options |
| Max Tire Clearance | 50mm |
| Color Options | Black |

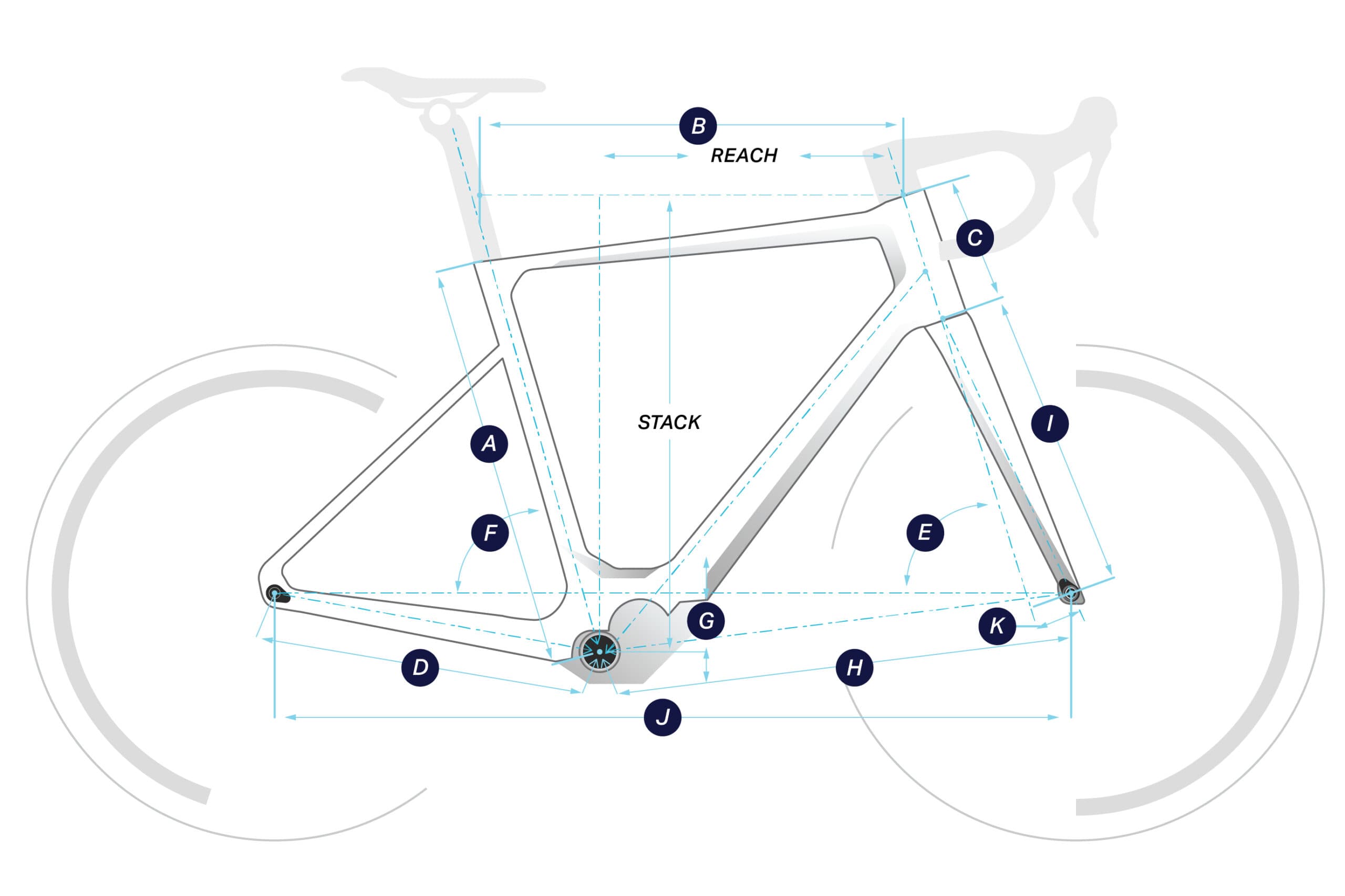

Frame Sizing
| Frame Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Rider Height | 158-166 | 166-174 | 174-182 | 182-190 | 188-196 |
| ST Length (A) | 440 | 470 | 500 | 531 | 560 |
| ETT Length (B) | 515 | 539 | 548 | 565 | 580 |
| HT Length (C) | 141 | 147 | 167 | 185 | 195 |
| Chain Stay (D) | 434 | 434 | 434 | 434 | 434 |
| HT Angle (E) | 70.5 | 70.5 | 71 | 71.5 | 72 |
| ST Angle (F) | 74 | 73.5 | 73.5 | 73.5 | 73 |
| BB Drop (G) | 75 | 75 | 75 | 75 | 75 |
| Front Center (H) | 588 | 603 | 614 | 624 | 624 |
| Fork Length (I) | 396 | 396 | 396 | 396 | 396 |
| Wheelbase (J) | 1011 | 1026 | 1038 | 1047 | 1047 |
| Fork Offset (K) | 50 | 50 | 50 | 50 | 50 |
| Reach | 357 | 370 | 380 | 388 | 390 |
| Stack | 565 | 570 | 590 | 610 | 620 |

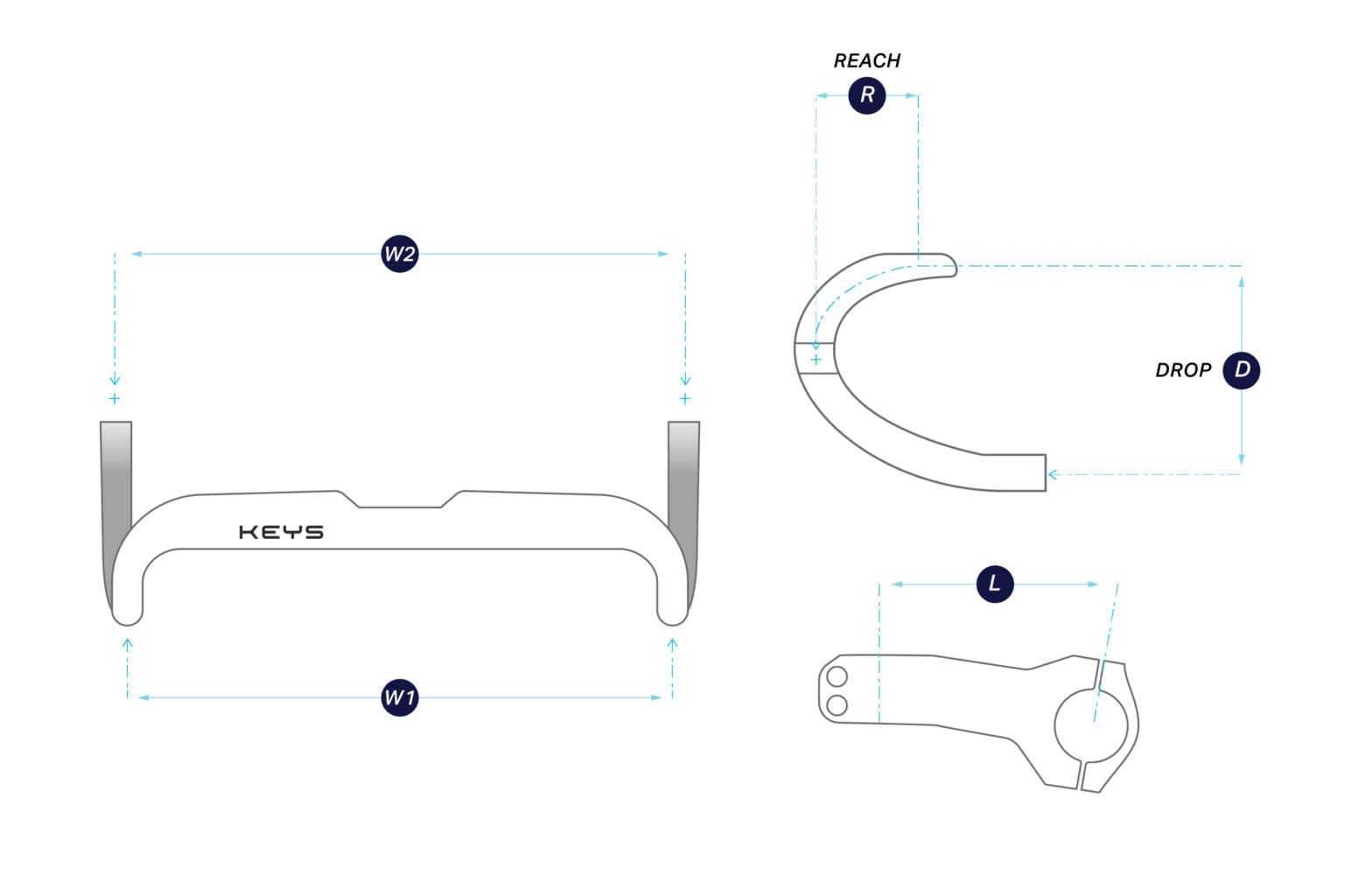

Handlebar Geometry
| Handlebar Geometry | 36 | 38 | 40 | 42 |
|---|---|---|---|---|
| W1 Width | 360 | 380 | 400 | 420 |
| W2 Width | 380 | 400 | 420 | 440 |
| L Stem | 80/90/100/110/120/130/140 | 80/90/100/110/120/130/140 | 80/90/100/110/120/130/140 | 80/90/100/110/120/130/140 |
| R Reach | 70 | 70 | 70 | 70 |
| D Drop | 130 | 130 | 130 | 130 |
| A Angle | 7 | 7 | 7 | 7 |
In Detail
Questions
The TCT has an estimated range of 100km+ on eco/tour mode with the built-in 370Wh Bafang F044 battery. An optional external Bafang F042 (252Wh) battery extends the range further.
The TCT uses the Bafang M820 motor — an ultra-lightweight unit designed for smooth, natural power delivery. Five assistance modes let you choose how much help you want.
Approximately 7 days from Bangkok via Singapore to Auckland, plus assembly time. We'll keep you updated at every stage of the process.
Yes. Contact Kevin to arrange a test ride in Auckland. No pressure — happy to chat bikes anytime.
Lifetime frame warranty covering manufacturing defects. Motor and battery follow Bafang warranty terms. Components follow Shimano/SRAM global warranty terms.

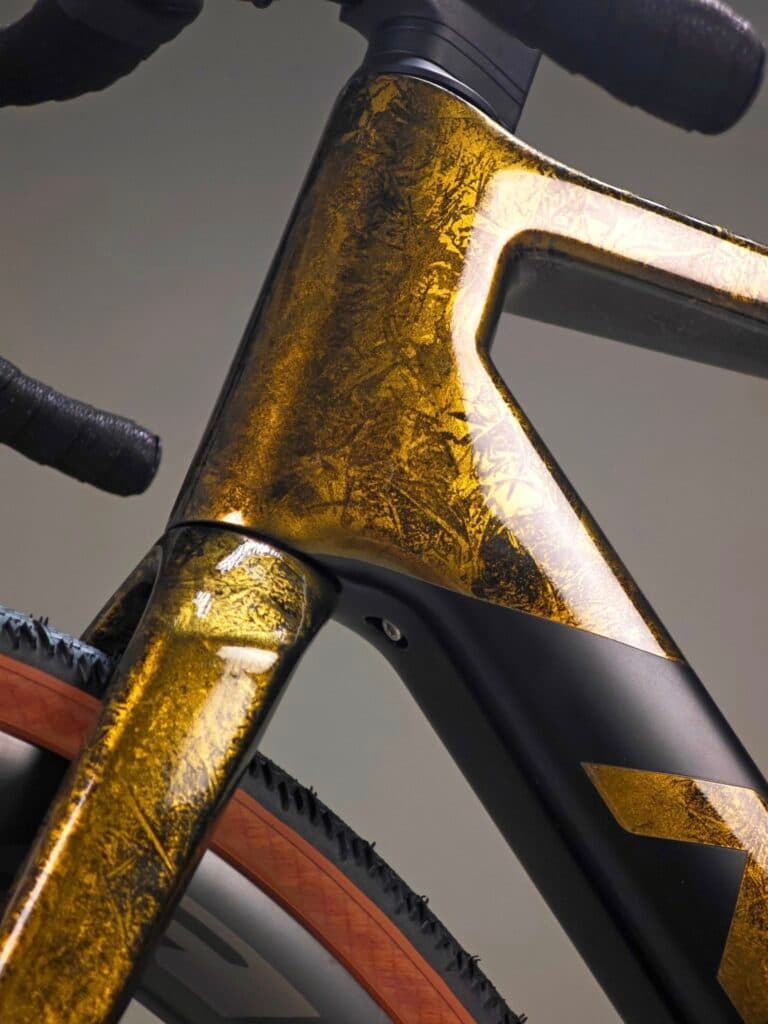

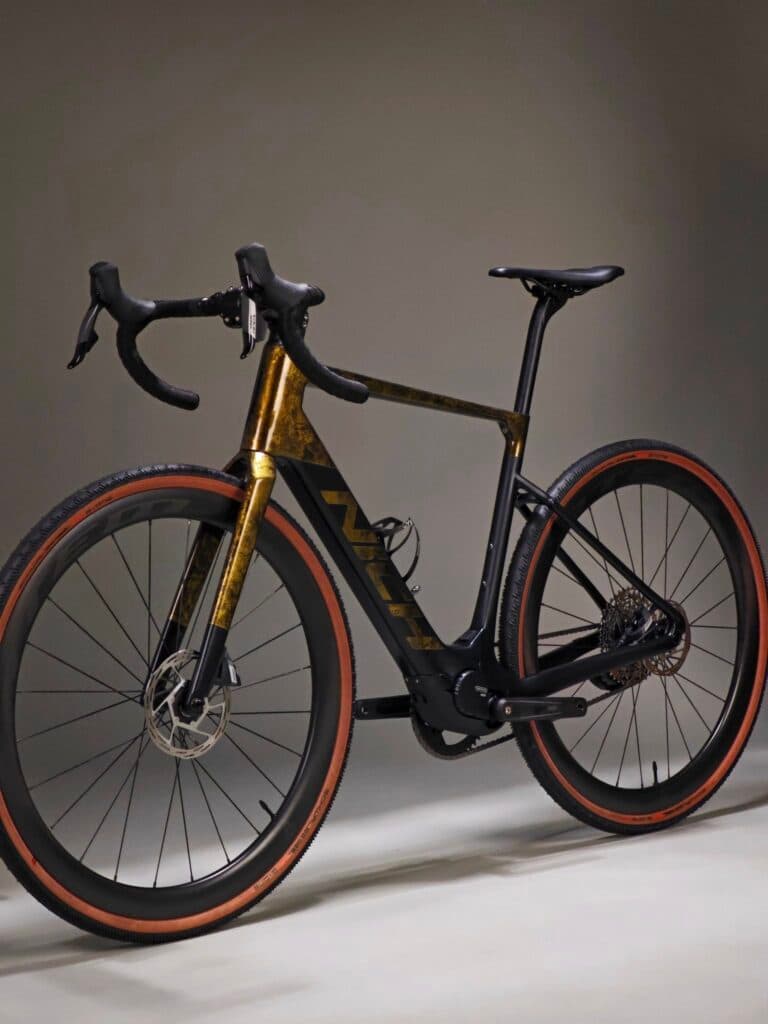

Yes. NICH offers custom colour options on all models. Contact us to discuss your preferences.
25% deposit via bank transfer or Wise. Balance due on arrival in New Zealand. Contact us to start the process.
